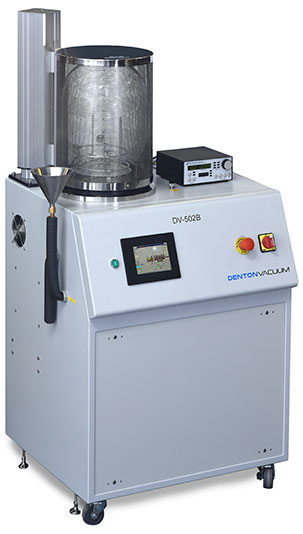

DV-502 Thin Film Deposition Solution

Thermal Evaporation & Sample Prep

With the DV-502, you’ll achieve rapid cycle times – this system can reach the 10-6 torr range within three minutes. The contamination-free performance makes it a great choice for sample preparation for electron microscopy.




Applications

  • Rotary shadowing for metals & carbon
  • Glow discharge for making hydrophilic TEM grids
  • Metal & dielectric films
  • Recipe development
  • Small-scale production
  • Forensic analysis
  • Failure analysis
  • Quality assurance

How It Works

The DV-502 Thermal Evaporation system evaporates many of the metals and compounds involved in optical coatings, metallization, and electron microscope specimen preparation with no discernible contamination. This thin film deposition system also offers flexibility with a range of configurations available to meet your needs, including evaporation from a range of sources such as tungsten filaments, wire baskets, foil boats, baffle box heaters as well as carbon rod or yarn accessories.
